Sunday, September 26, 2010

It's Electric

I am now working at getting all the other systems back in the car in preparation for putting the fiberglass body back on.  First to go back in - the electrical system.  All the under-hood wiring is back in including harness, relays, coil, fuses, etc.  Also back in is the wiper motor and heater fan.  Since a lot of this wiring ultimately connects to the engine there are still a lot of danglies, but she's lookin' good!



At the back of the car, a new hold-down mount for the battery has been fashioned and welded in, and the hold-down assembly cleaned and painted.  A new battery has been purchased, and the main battery lead from the trunk to the hood has been installed.  The main harness to the rear of the car is also back in place including connections to the shifter mechanism and brake pedal.


As you can see, the shift linkage, seatbelt attachment point, and chair rails are all back in place, as are the throttle pedal and linkage, charcoal filter, and bits of the ventilation system.  I've also completed repair, painting, and undercoat of the front wheel "baffles" and metal floorboard trim panels.  The former will go in soon, the latter after the engine is back in and all the systems have been tested and adjusted.

Next up: final prep and paint of the trunk area and fuel system refurbishment and re-installation.


Saturday, September 18, 2010

Rollin, Rollin, Rollin

With the engine bay all sealed up and a couple of coats of enamel on that, it was time to start the re-assembly process.  Step one: get those wheels back on.  That means axles, suspension, shocks, and steering.  The front assemblies went together pretty smoothly.


To complete the assembly, required the steering assembly.  More on that later.

Oddly enough, the rear suspension, which is much less complicated, took more work.  It wasn't exactly easy to fit the four washers, and align the main bushing bolt all whilst lifting the entire rear axle and drum brake assembly above my head.  Then the main bolt kept wanting to strip itself - until it finally occurred to me that I had cleaned the parts so well they were bone dry, without any lubrication.  That big old bolt and nut had enough surface area that the resulting friction was essentially acting to heat weld themselves together.  A little WD-40 and a new universal joint for the socket wrench for better access made a world of difference.

Then I had to figure out those pesky stop straps - how long are they really supposed to be, and how to adjust them?  The originals were both torn, but by fitting the pieces together and backing off the distance specified in my repair manual I had a reasonable guess at the optimum mounting length.  Because I could not find replacement straps for a Saab, I purchased a set designed for a Volvo of the same vintage.  These were slightly shorter and wider than stock, but worked out to have just the length required.  I think the originals deteriorated so badly in part because they were installed too tightly.  Anyway, the result looks pretty secure.


With the new shocks in place, it was time to move on to something new.  While I was focused on the wheels, I figured I'd complete the braking system.  The biggest challenge here was cutting, bending and flaring all the hard lines.  After struggling through half of the lines, my flaring tool broke.  The replacement was much better, and the remaining lines were a breeze (when I remembered to put the fittings on and in the right orientation).

Of course you can't have brakes without a pedal to push!



One of the first projects completed after the disassembly (last spring) was to rebuild the clutch and brake master cylinders, so both were bolted back to the firewall.  With my daughter pumping the pedal, the bleeding process was completed, and the few leaks found eventually sealed successfully.  The car may not go yet, but it can stop!


In the photo above, you can see the master cylinders at bottom right, the steering gears above, and some of the brake lines.

The emergency brakes went in without a hitch.












After several months upside down and up on blocks, it was actually a shock to see the car riding low and beginning to resemble a car again.  (And for my wife to be able to park in the garage again!)


Monday, September 6, 2010

Baby Steps

Well, I missed getting pictures of the seam sealer before the undercoating went on (or the undercoat itself for that matter).  Here's a sample of the finished product though.

All the joints sealed up tightly, a nice, consistent color and texture, and ready (almost) for some reassembly.

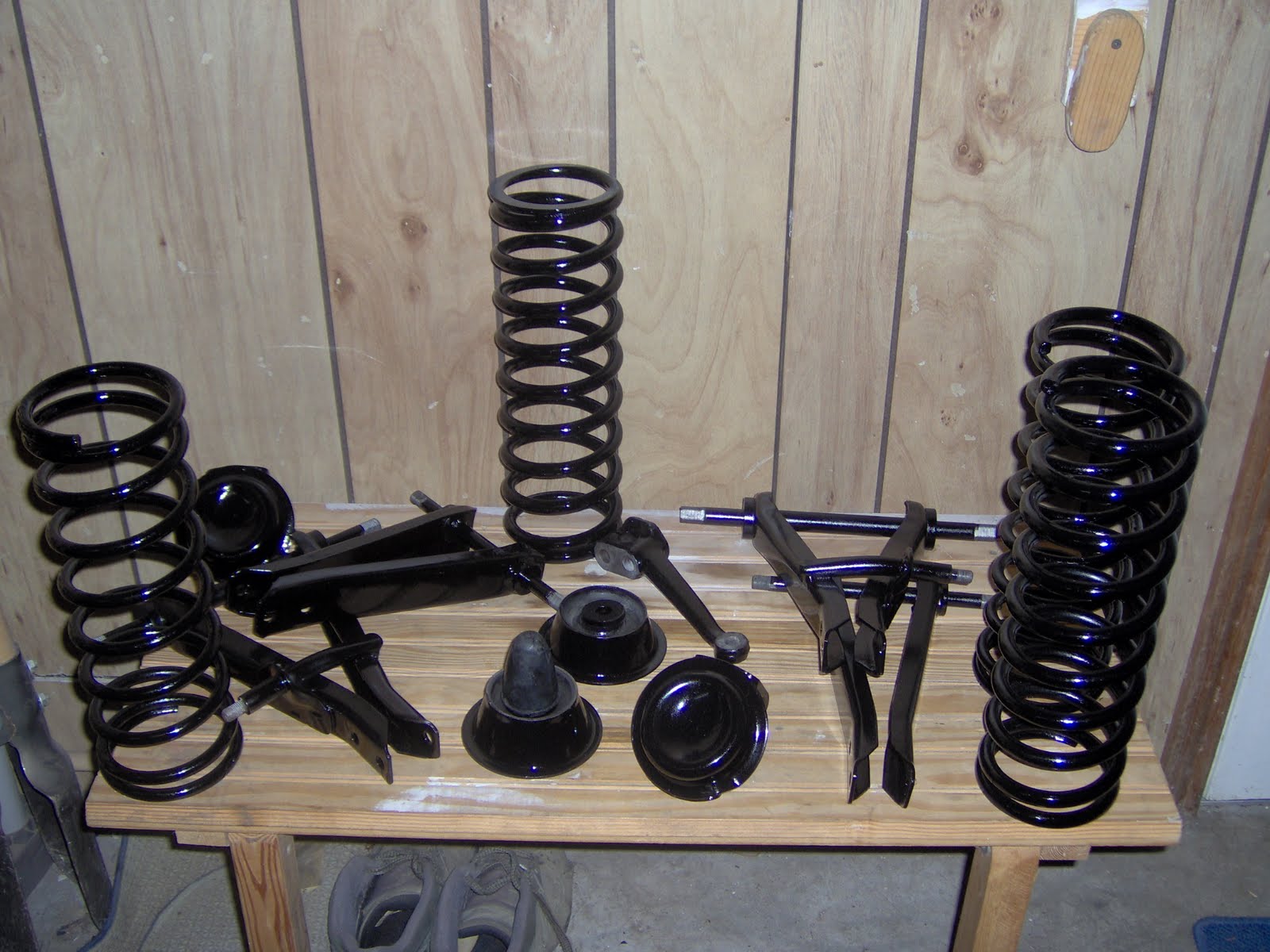

Part of the hold-up, once again, was waiting on optimal paint conditions.  I finally got wise, and installed a window AC unit in the garage, so the humidity issues are a thing of the past, and it is a LOT more comfortable in there now!  The special primer went on all the last few loose parts, and then (after a light sanding) a coat of enamel.


While I waited for parts to dry, I got the wheel hubs and rear brake drum assemblies back together.


So far, no major trauma, though the retainer clips for the front brake pistons had me scratching my head for an afternoon.  I also broke off a bolt in one of the rear hub assemblies and had to extract/replace it.

Now the critical path is to complete the seam sealer work on the topside of the car so the topcoat of paint can go on in the engine bay and trunk.  The interior of the car will all be covered up with carpet, so no need to topcoat in there.  As you can see below, I've already gotten the seams sealed at both sides of the firewall, and am working my way back to the trunk.  The grills are masked off in the engine bay to keep the undercoat on the exterior only.




I am doing a little experiment with the rocker panels.  Because these historically trap moisture, which leads to corrosion, I have drilled a 1/2" hole at each end of the interior side of the rockers - inside the front door pillars, and behind the rear seat baffle.  I'm hoping that if the rockers can "breathe" a little, it will slow the corrosion process when the inevitable moisture gets in there.
